- Thank you very much for visiting TYT TH-9800 mobile ham radio. The TH-9800 is one of the most popular ham radios available. It has amazing features that allow it to be user-friendly and powerful. The programming of TH-9800 mobile transceiver is simple and easy. For beginner, please read the user manual, or watch related programming videos on YouTube, Facebook, and Google, etc.
- The quad band mobile radio frequency range: 28-29.7/50-54/144-148/420-450MHz(TX), 26-33/47-54/108-180/320-512/750-950MHz(RX). Only the VFO on the left side of the radio will work on 6 or 10 meters. Both VFOs work on the 2 meter and 70 cm bands. This amateur radio has been FCC certified, FCC ID: PODTH-9800.
- The audio of the TH-9800 radio is truly loud and clear. Most users are highly pleased with the audio, even when using the handheld microphone. With amazing clarity, you will be able to hear all types of frequencies with ease.
- The rugged design of the TH-9800 makes it a favorite among ham radio enthusiasts. No user wants to have to worry about their radio becoming damaged easily. Thankfully, TYT has made this radio with a truly rugged design that will hold up to all types of abuse and operating conditions.
- Please contact us via Amazon Message at any time if you have any questions. We will response you within 24 hours. Kit includes: TYT TH-9800 Plus mobile transceiver, USB Programming Cable, Keypad DTMF microphone, Front controller separation cable, Front controller mounting bracket, Radio body mounting bracket, DC power cable with fuse holder, Screw packs, Protection fuses, User manual.
The main features of mobile ham radio:
50W of high power output for VHF band and 40W for UHF band.
Cover 29 / 50 / 144 / 430 MHz four transmitting bands.
Support chirp programming.
Frequency: TX: 28-29.7/50-54/144-148/420-450MHz, RX: 26-33/47-54/108-180/320-512/750-950MHz.
FCC ID: PODTH-9800, fully in compliance with the FCC regulations.
Standard 50 groups of CTCSS tone and 104 groups of DCS code.
Independent controls for each left and right band.
V V, U U, V U simultaneous receive capability.
Ultra-size LCD dual display screen.
Builtin V U cross- band repeater and full duplex capability.
Detachable front controller and remote mounting capability.
Voice compander and encryption scramble.
800 memory channels and independent setting per channel.
User-defined CTCSS tone & DCS code capability.
Automatic Repeater Shift (ARS).
DTMF I 2-Tone I 5-Tone for selective calling.
User-programmable microphone keys.

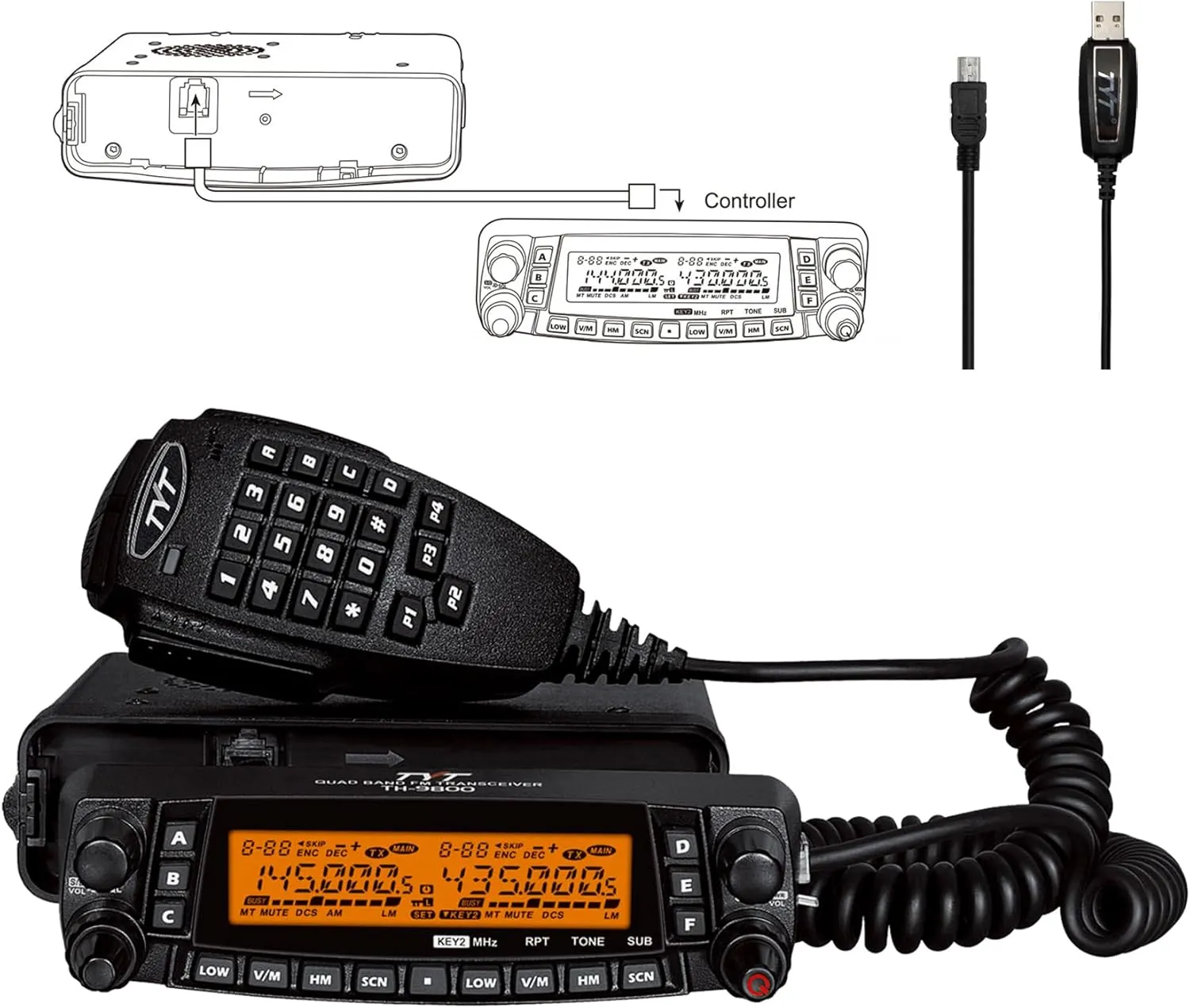

The mobile radio kit includes:
TYT TH-9800 Plus mobile transceiver x 1
USB Programming Cable x 1
Keypad DTMF microphone x 1
Front controller separation cable X 1
Front controller mounting bracket x 1
Radio body mounting bracket x 1
DC power cable with fuse holder X 1
Screw packs x 1
Protection fuses x 1
User manual x 1
- Package Dimensions : 11 x 7 x 4 inches; 4 Pounds
- Date First Available : June 18, 2024
- Manufacturer : Quanzhou TYT Electronics Co., Ltd.
